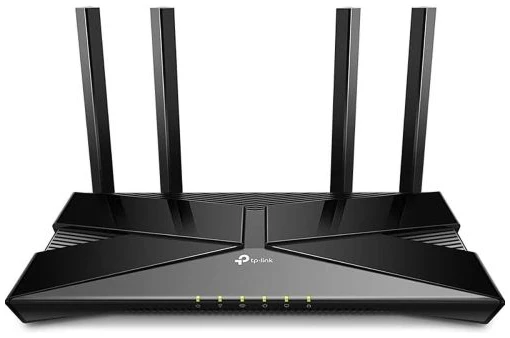

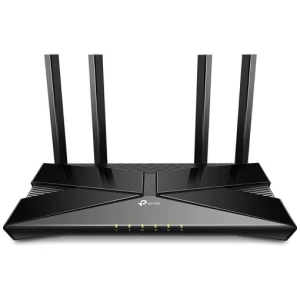

TP-LINK Router Archer AX1800 Wireless 802.11ac/1800Mbps LAN/WAN Black EU

Features:

• Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
• Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.^†
• Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.^△§
• Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth.
• Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
• Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.^‡
• USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices.

Technical specifications:

WIRELESS

• Standards:
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds:
  • AX1800
  • 5 GHz: 1201 Mbps (802.11ax)
  • 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range:
  • Suitable for 3 Bedroom Houses
  • 4× Fixed Antennas
  • Beamforming for enhanced signal strength
  • High-Power FEM for improved transmission power
• WiFi Capacity:
  • High
  • Dual-Band
  • OFDMA for simultaneous communication with multiple clients
  • Airtime Fairness for improved network efficiency
  • 4 Streams for more bandwidth
• Working Modes:
  • Router Mode
  • Access Point Mode

SECURITY

• Network Security:
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
• Guest Network:
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
• VPN Server:
  • OpenVPN
  • PPTP
• WiFi Encryption:
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)

HARDWARE

• Processor: Dual-Core CPU
• Ethernet Ports:
  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports
• USB Support:
  • 1× USB 2.0 Port
  • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
  • Supported Functions: Apple Time Machine, FTP Server, Media Server
• Buttons:
  • WPS/Wi-Fi Button
  • Power On/Off Button
  • LED On/Off Button
  • Reset Button
• Power: 12 V ⎓ 1.5 A

SOFTWARE

• Protocols: IPv4, IPv6
• OneMesh: Supported for flexible network coverage
• Parental Controls:
  • URL Filtering
  • Time Controls
• WAN Types:
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
• Quality of Service: QoS by Device
• Cloud Service:
  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS
• NAT Forwarding:
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
• IPTV:
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
• DHCP:
  • Address Reservation
  • DHCP Client List
  • Server
• DDNS:
  • TP-Link
  • NO-IP
  • DynDNS
• Management:
  • Tether App
  • Webpage
• OTHER
• System Requirements:
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
  • Certifications: FCC, CE, RoHS
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power:
  • CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
  • FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

PHYSICAL

• Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)

Items included:

• Wi-Fi Router Archer AX1800
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
