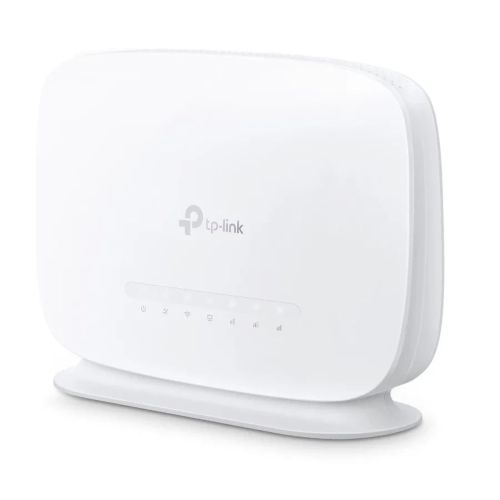

TP-LINK Router Archer MR505 AC1200 Wireless 802.11ac/1200Mbps LAN/WAN White EU

Features:

• Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
• Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
• EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
• Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device.
• Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
• Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can’t get a 4G connection
• Easy setup and management all by Tether app

Technical specifications:

Hardware Features

• Interface:
  • 1 × 10/100/1000 Mbps LAN/WAN Port
  • 2 × 10/100/1000 Mbps LAN Ports
  • 1 × Nano SIM Card Slot
  • 2 × External SMA-F Antenna Interface
• Power Supply: 12V/1.5A
• Dimensions (W x D x H): 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in)
• Antenna: 2 Detachable External LTE Antennas

Wireless Features

• Wireless Standards:
  • IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
  • Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
• Reception Sensitivity:
  • 5 GHz: Various rates with sensitivities ranging from -77 dBm to -64 dBm
  • 2.4 GHz: Various rates with sensitivities ranging from -74 dBm to -69 dBm
• Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Network Type: Compatible with the majority of mobile operators and supports 4G/3G bands

Software Features

• Quality of Service: Prioritizes network traffic by device
• Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management: TP-Link Cloud, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: TP-Link, DynDns, NO-IP
• VPN: VPN Server: PPTP VPN, OpenVPN
• Parental Controls: URL Filtering, Time Controls
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

Others

• Certification: CE, RoHS
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Items included:

• 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505, 1.5m Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
