TP-LINK Router TL-WR820N N300 Wireless 802.11n/300Mbps LAN/WAN White EU

Features:

• 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Compatible with IPv6 (Internet Protocol version 6)
• Guest Network provides separate access for guests while securing the host network
• Parental Controls manage when and how connected devices can access the internet
• Security protocols protect your home network with firewalls and wireless encryption

Technical specifications:

Wireless

• Standards: Wi-Fi 4
  • IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: N300
  • 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: Suitable for 2 bedroom houses
  • 2× Fixed Antennas
• WiFi Capacity: Legacy
• Working Modes: Router Mode

Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 2.4 GHz Guest Network
• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Hardware

• Processor: Single-Core CPU
• Ethernet Ports:
  • 1× 10/100 Mbps WAN Port
  • 2× 10/100 Mbps LAN Ports
• Buttons: WPS/Reset Button
• Power: 5 V ⎓ 0.6 A

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: NO-IP, DynDNS
• Management: Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Certifications: FCC, CE, RoHS

Environment:

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Test Data

• WiFi Transmission Power:
  • CE: <20dBm (2.4GHz)
  • FCC: <30dBm
• WiFi Reception Sensitivity: Various sensitivity levels for different data rates

Physical

• Dimensions (W×D×H): 11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)

Items included:

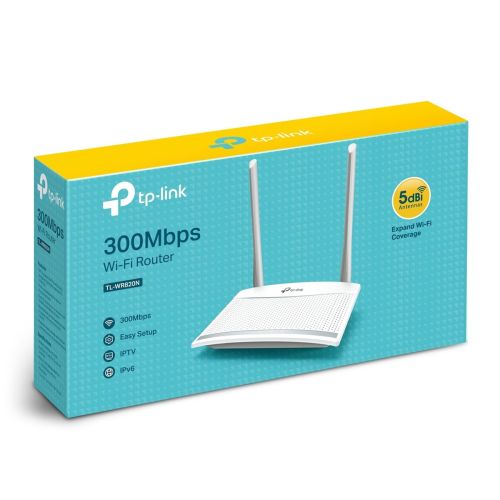

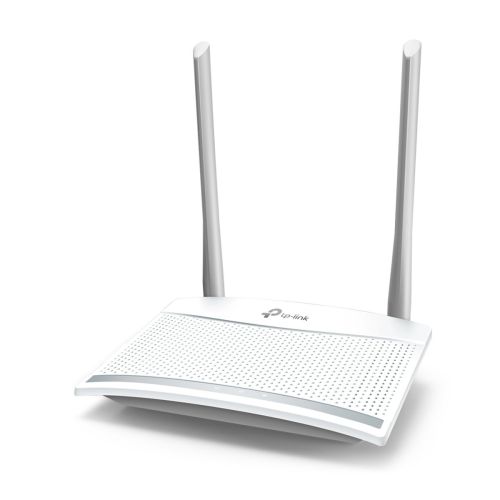

• Wi-Fi Router TL-WR820N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
