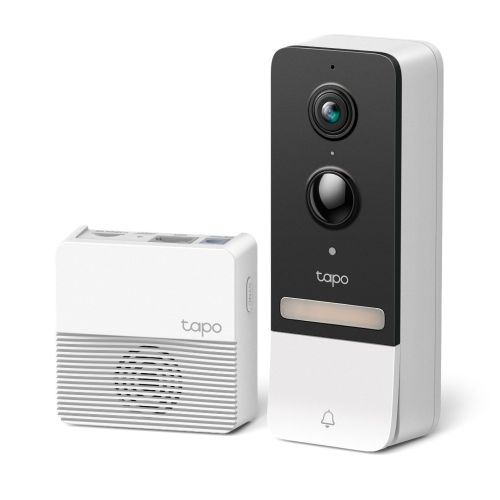

TP-Link Smart Video Doorbell Tapo D230S1 Kit, Wireless, 2K 5MPx, IP64, White EU

Features:

• 2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
• Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.
• Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m^†, which shows more vertical details than other 16:9 doorbells.
• Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
• Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
• Smart AI Detection and Notification: Smart AI algorithms identify people, pets, packages, and cars, and notify users as needed.
• Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
• Flexible Storage Choice: Save recorded videos on the hub-installed microSD card (up to 512 GB) or by using Tapo Care cloud storage services.
• Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
• Water & Dust Resistant IP64： Operates well on rainy days and in damp environments.

Technical specifications:

Camera

Image Sensor: 1/2.7“ Progressive Scan CMOS Sensor

Lens:

• Focal Length: 2.1 mm
• Aperture: F2.1
• Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)
• Night Vision: 850 nm IR LED (25 ft / 7.6 m), Full-Color Night Vision
• Lighting: Built-in Spotlights
• Interface & Button:
  • 1× RESET Button
  • 1× Doorbell Button
  • 1× Anti-Theft Button
• Hub Compatibility: Compatible with H200 (Included)

Hub

• Device Compatibility: Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells
• Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells

Interface & Button:

• 1× Ethernet Port
• 1× RESET Button
• 1× MicroSD Card Slot (Up to 512 GB)
• 1x SYNC Button

Video & Audio

• Maximum Resolution: 2K 5MP (2560 × 1920px)
• Frame Rate: 15 fps
• Digital Zoom: 16x
• Video Compression: H.264
• Live View: Yes
• Image Enhancement: 3DNR, WDR
• Audio Input & Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume:
  • Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
  • Hub: 100 dB (Level measured at 4-inch/10-cm distance)

Storage

• Local Storage: MicroSD Card Slot on Hub (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

Detection and Notifications

• Sensor: Single PIR Motion Sensor (FOV: 130° horizontal), One Ambient Light Sensor
• AI Detection: Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Package Detection
• Activity Zones: Yes (Only works with Motion Detection)
• Output Notification: System Notification, System Notification with Snapshot (Tapo Care Services)

Network

• Network Connectivity: Connect via Wi-Fi
• Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Sub-1G, 868MHz (Used for local connection between doorbell and hub)
• Ethernet Port:*1× 10/100 Mbps RJ45 Port on Hub

Security

• Security: On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS, WPA/WPA2-PSK

Power

• Power Source:
  • Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
  • Hub: 9V DC Power Adapter
• Input Voltage:
  • Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
  • Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
• Output Voltage:
  • Hub Adapter Output: 9.0 V, 0.85 A
  • Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A

General

• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP64
• System Requirements: Tapo App: iOS 12.0 or higher, Android 4.4 or higher
• Mounting Options: Stick to a Wall, Mount to a Wall
• Operating Temperature: -20℃~45℃
• Storage Temperature: -20℃~45℃
• Operating Humidity: 10%~90% RH, Non-condensing
• Storage Humidity: 5%~90% RH, Non-condensing
• Dimensions:
  • Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
  • Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)

Certifications: CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA

Items included:

• Tapo Video Doorbell × 1
• Tapo H200 Hub × 1
• Tapo A100 Battery × 1
• DC Power Adapter × 1
• RJ45 Ethernet Cable × 1
• USB Adapter Cable × 1
• Screws and Anchors × 3
• 3M Adhesive × 1
• Mounting Bracket × 1
• Mounting Template × 1
• 15° Mounting Wedge × 1
• Doorbell Detaching Pin × 1
• Button Sticker × 1
• Mounting Wedge Screw × 5
• Quick Start Guide
