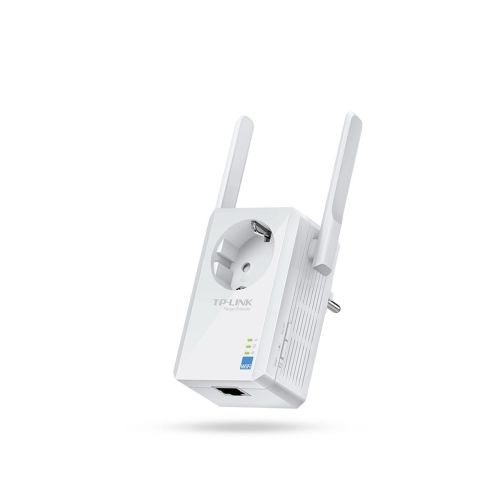

TP-LINK Wireless Range Extender with Socket TL-WA860RE N300 Wireless 802.11n/300Mbps LAN/WAN White EU

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Extra power socket making sure that no power outlet is going to waste
• 2 fixed external antennas provide excellent Wi-Fi coverage and reliability
• Easily expand wireless coverage at a push of Range Extender button
• Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

Technical specifications:

Hardware Features

• Standards and Protocols: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Plug Type: EU, UK, US
• Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
• Button: RE (Range Extender) Button, Reset Button
• Input Power: 100-240V~50/60Hz
• Power Consumption: About 3W
• Dimensions (W x D x H): 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2mm)
• Antenna: 2 external

Wireless Features

• Frequency: 2.4~2.4835GHz
• Signal Rate:
  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
• Reception Sensitivity:
  • 270M: -69dBm@10% PER
  • 130M: -69dBm@10% PER
  • 108M: -69dBm@10% PER
  • 54M: -69dBm@10% PER
  • 11M: -86dBm@8% PER
  • 6M: -89dBm@10% PER
  • 1M: -91dBm@8% PER
• Transmit Power: < 20 dBm (EIRP)
  • Wireless Modes: Range Extender/Access Point
  • Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC Address Filtering, Wireless Statistic, Domain Login Function, LED control, Power Schedule
  • Wireless Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PS

Others

• Certification:CE, RoHS, FCC
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux

Environment:

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Items included:

• 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE
• Quick Installation Guide
