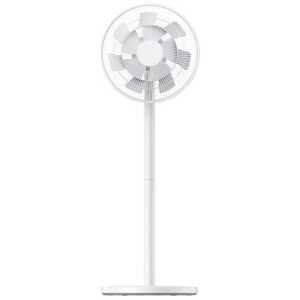

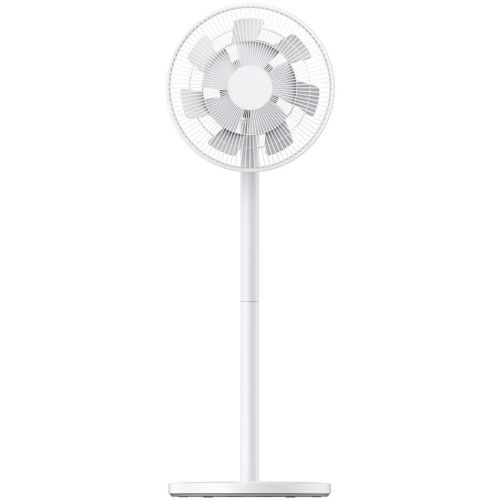

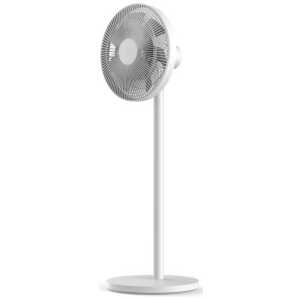

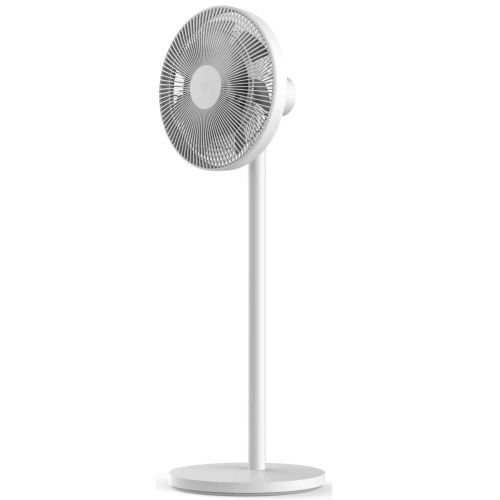

Xiaomi Mi Smart Standing Fan 2 EU BHR4828GL

Dual blades for a natural breeze

• Dual blades – Surround yourself with a natural breeze
• DC motor – Reducing power consumption
• Voice control – Turn it on with a single command
• 140° ventilation – Cools the whole room
• 14m* range – Long-range ventilation
• 100 levels – Fine wind speed adjustment
• Table and floor – Place it wherever you like
• Silent all night – Noise as low as 30.2 dB(A)*

Double natural breeze, all around cooling

• Dual blades
• Natural breeze-simulating algorithm
• DC inverter

7+5 wing-shaped blades
The secret to a gentler breeze

The two layers of fan blades rotate simultaneously, increasing airflow for more powerful cooling. With its wider reach, the dual blades also provide a more gentle three-dimensional breeze.

Precise speed settings*
24-hour preset for different needs

Switch between natural breeze or direct blow. Set the fan speed to anywhere between 1 and 100 in the Mi Home app, to achieve your desired airflow.*

DC motor
Only 1kWh for an entire summer*

The fan uses a DC copper-wire motor, which has higher operating efficiency and longer service life than an aluminium-wire motor. It provides constant speed for more stable ventilation and lower power consumption. Its wing-shaped blades produce a maximum air flow of 20m³/min*.

• 1 kWh can last an entire summer on speed level 1*
• 10 kWh can last more than an entire summer on speed level 4*
• 10 kWh can last more than an entire summer on speed level 4*

Operate however you like
Supports voice control

Switch between natural breeze or direct blow. Set the fan speed to anywhere between 1 and 100 in the Mi Home app, to achieve your desired airflow.*

Versatile usage
Perfect for any room

Press the single button to easily adjust the height of the stand. Place it on top of a table or on the floor.

Ultra-wide angle 140° ventilation*
Increase airflow

Adjustable wide-angle ventilation with a maximum range of 14m to cool the room for the whole family.

• 140° Horizontal rotation*
• 39° Up and down tilt*

Keeping the room both cool and quiet

With its smooth-running brushless DC motor and dual fan blades, the fan has been optimized to deliver an exceptionally quiet and disturbance-free experience.

• 30.2dB(A)* – Minimal operating noise
• 55.8dB(A)* – Maximum noise level of airflow

Every detail has been rigorously tested

The fan has undergone rigorous testing to ensure reliability. The fan endured:

• 5000 – horizontal head rotations
• 1000 – up and down tilt adjustments
• 10, 000 – power button uses
• 10, 000 – function button uses

Easy 4-step assembly

1. Press one button to quickly add or remove the extension tube
2. Easily remove the washable cover to clean it
3. Rotation damper for smoother adjustment
4. Use the child lock function to prevent children from changing the settings

^{*14m maximum ventilation range: Data supplied by Xingyue Research Laboratory. In natural-breeze mode on level 4, at a distance of 14m, the wind speed measured 0.38 m/s. Report no.: XYYF-20-0416-2.*30.2 dB(A) minimal operating noise: Data supplied by China Household Electric Appliance Research Institute (CHEARI). The noise level generated used natural-breeze mode on level 1 without head rotation producing 30.2 dB(A). Report no.: WS1-20-069.*100-level speed settings: Can be controlled via the Mi Home app. Only the direct-blow mode is supported. Speed levels corresponding to those on the fan: Level 1 on the fan is equivalent to speed 1 in the app. Level 2 on the fan is equivalent to speed 35 on the app. Level 3 on the fan is equivalent to speed 70 on the app. Level 4 on the fan is equivalent to speed 100 on the app.*24-hour preset: Go to the Mi Home app fan plug-in > More > Settings> Preset power on/off to set for up to 7×24 hours.*Switch between airflow modes and speed levels: Go to the Mi Home app fan plug-in > More > Settings > Smart scene to switch between “natural breeze” and “direct blow” and adjust the speed to your liking.*1kWh lasting an entire summer: In direct-blow mode, output on level 1 is 1.4 W. This data is supplied by China Household Electric Appliance Research Institute (CHEARI). Calculating based on 8 hours of operation per day, the consumption over an entire summer using direct-blow mode on level 1 without head rotation: 1.4 W×8 hours÷1000×90 days＝1.008 kWh. Report no.: WS1-20-041.*Maximum airflow of 20m³/min: Data supplied by China Household Electric Appliance Research Institute (CHEARI). In direct blow mode, the air flow on level 4 is 20m³/min. Report no.: WS1-20-029.*10 kWh lasting an entire summer on level 4: In direct-blow mode, output on level 4 is 13.8 W. This data is supplied by China Household Electric Appliance Research Institute (CHEARI). Calculating based on 8 hours of operation per day, the consumption over an entire summer using direct-blow mode on level 4 without head rotation: 13.8 W × 8 hours ÷ 1000 × 90 days = 9.936 kWh. Report no.: WS1-20-029.*The Mi Smart Standing Fan 2 has a rated power as low as 15W. Compared to the Mi Smart Standing Fan, which has a rated power of 32W, it can save energy by more than 53%.*About 53% more efficient compared to an AC motor: The Mi Smart Standing Fan 2 has a rated power as low as 15W. The test data is calculated under the conditions set forth in “DC Dual Blade Fan” (Q/ZXYDQ 010-2020). Compared to Mi Smart Standing Fan 2 Lite, which has a rated power of 38W, the Mi Smart Standing Fan 2 can save energy by more than 60%.*In order to use Amazon Alexa and Google Assistant voice control the fan needs to be linked to a smart device that supports smart voice control. Such devices need to be purchased separately.* 140° horizontal rotation and 39° up and down tilt; 30°, 60°, 90°, 120° and 140° head rotation angles can be selected in the Mi Home app; tilt (23° upwards and 16° downwards) must be set manually; data supplied by Xingyue Research Laboratory, report no. XYY-20-0416-1.*14m long-range ventilation: Data supplied by Xingyue Research Laboratory. In direct blow mode on speed level 4, the wind velocity at a 14m distance is 0.38 m/s. Report no.: XYYF-20-0416-2.*55.8 dB(A) maximum noise level of air flow: Data supplied by the China Household Electrical Appliance Research Institute (CHEARI). The noise level was tested using direct-blow mode on level 4 without head rotation. Report no.: WS1-2—029.* 30–60 dB(A) noise level refers to daily sound range: Data quoted from the American Academy of Audiology document — “Levels of Noise”.*Google is a trademark of Google LLC Google Assistant is not available in certain languages and countries. *Amazon Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.}

Specifications:

• Product name: Mi Smart Standing Fan 2
• Model no.: BPLDS02DM
• Dimensions: 343 × 330 × 1000mm
• Weight: 3kg
• Airflow: 20m³/min
• Noise emission: ≤58dB(A)
• Rated frequency: 50/60Hz
• Rated voltage: 100–240V
• Rated power: 15W
• Model Authorization Number: CMIIT ID 2017DP7231 Radio transmission module
