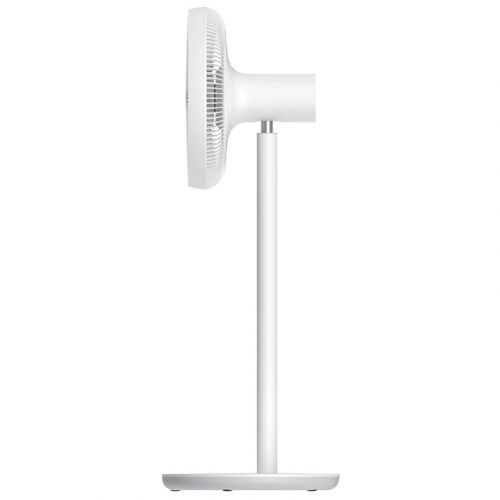

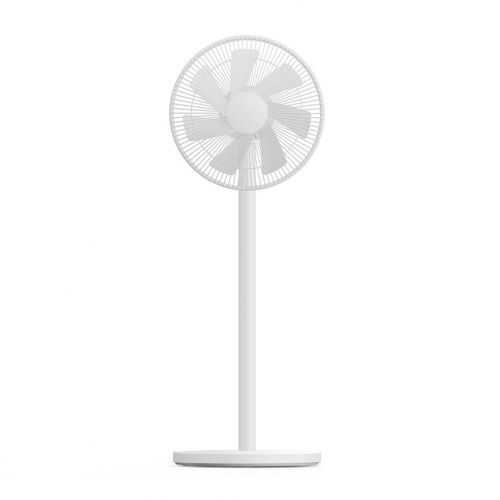

Xiaomi Mi Smart Standing Fan 2 Lite EU PYV4007GL

A cool, intelligently controlled breeze according to your wishes

7 rotor blades for powerful airflow / Intelligent control / Long range of 15 meters / Dual use – tabletop or floor

• 7 rotor blades for powerful airflow – Gentle and steady breeze
• Air distribution range of 15 meters* – No adjustment necessary, so you stay relaxed and cool
• Voice control – Fan operation with just one command
• Intelligent temperature adjustment – For the perfect cool breeze on hot summer days
• Dual use – table top or floor – Suitable for different purposes
• Wide-angle air distribution with 90°* – Stay cool whether you’re standing or sitting

7 rotor blades for gentle and powerful air distribution No more sweltering heat

7-blade design creates powerful and smooth airflow. Aerodynamics have been tested to the last breath to allow the fan to replicate subtle changes in airflow. The result is a gentle, comfortable breeze that cools and refreshes in the summer heat.

• 9-27 m3/min Maximum airflow*
• 38 dB(A) minimum noise level*

Air distribution range of up to 15 meters*
No adjustment necessary, so you stay relaxed and cool

With the Mi Home app you can pick up your cool breeze on hot summer days. Combined with the Mi Temperature and Humidity Meter, the airflow modes can be adjusted intelligently.

• Clean air distribution Easy to remove and washable hood
• 9-27 m3/min Maximum airflow*

Coordination via intelligent devices for the entire room Convenient control with four wake-up modes

• “Hey Google, turn on my smart fan”
• “Alexa, set my smart fan to speed 1”

^{* Voice control requires the use of a smart voice activation device such as Mi Ai Speaker.}

• Control via Mi Home App
  Remote control via your phone
• 24 hour preset No waiting, no forgetting

Mi IoT connection* for intelligent air distribution that adapts to temperature

Combined with the Mi Temperature and Humidity Meter, the airflow and air distribution mode can be intelligently adjusted by presetting the intelligent environment in the Mi Home App for the perfect cool breeze on hot summer days.

^{* Smart connection is enabled by pairing the Mi Temperature & Humidity Monitor with the Bluetooth hub. This must be purchased separately. Products like Xiaomi’s air purifier have a temperature monitor that enables smart connection.}

Dual use on tabletop or floor for different settings

Double Threaded Rod: Attaches to different holes to switch between tabletop and floor use.

• Floor: 1000 mm*
• Table top: 642 mm*

Wide air distribution angle to adapt to your needs

Whether you’re sitting on the sofa watching TV, relaxing on the floor, or in a confined space with family members, you can find the perfect air distribution angle for your needs.

• 90° horizontal rotation*
• Intelligent memory in case of power failure No need to set the presets again
• 36° inclination*

Control for Mi Intelligent Air Conditioning – consumes only one kilowatt hour per week*

By linking the fan with the Mi Air Conditioner, you can intensify the cold air circulation in the room, adjust the temperature distribution and accelerate the temperature reduction. This keeps you cool and saves you money.

Maximum simplicity with three air speed control modes From a gentle breeze to a refreshing flow of air

Three simple and convenient air speed settings bring happy faces to the family.

• Level 1 Gentle Spring Breeze
• Level 2 Cool and comfortable
• Level 3 Refreshing airflow

^{* The figure shows the airflow at each stage in direct airflow mode. For reference only.}

Night mode – a range of speeds from slow to fast* Gentle like a gentle mountain breeze on a summer night

In contrast to a fixed air speed in direct airflow mode, the heat distribution in night mode adapts to your body temperature. If you set a high airflow before bedtime, the speed will automatically decrease as soon as you sleep. So you don’t wake up because it’s too cold.

Modern design that fits perfectly into any environment Made for every interior style

The pure white frame features clean, sleek contours that give the technology an elegant finish.

Only 3.5 kg with a sleek frame that can be carried with one hand.

Assembly in six steps thanks to the modular design Easy to use for all ages

• Top-Mounted Control Buttons For convenient operation without bending down
• Child lock Prevention of unintentional start-up

<sup>* Air distribution range of 15 meters: Data provided by Xingyue Research Laboratory. Test based on GB/T 13380-2018 ‘AC electric fans and controls’ using direct airflow mode at level 3. Passing wind speed at a distance of 15m was 0.41m/s. Report No.: XYYF-20-0415-3.
* Maximum airflow of 9-27 m3/min: Data provided by China Household Electric Appliance Research Institute (CHEARI). Report No.: WS1-20-033.
* Minimum noise level of 38 dB(A): Data provided by China Household Electric Appliance Research Institute (CHEARI). Report No.: WS1-20-033.
* This product can be connected to other smart Mi devices via WiFi via smart module in Mi Home App. See app for current performance characteristics. Devices for such a connection must be purchased separately. A hub is required to connect devices without Wi-Fi, such as the temperature and humidity meter. A direct connection is possible with devices that have a temperature and humidity sensor and a WLAN connection. This is the case, for example, with the air purifier. The fan is controlled by configuring the temperature or humidity conditions.
* The Mi Smart Stand Fan can be connected to devices that have a temperature or humidity sensor, such as the Mi Air Purifier. The intelligent module in the Mi Home App needs to be set according to your personal needs to activate the connection function.
* Floor height is 1000mm, desktop height is 642mm: Data provided by Xingyue Research Laboratory. Report No.: XYYF-20-0415-4.
* 90° horizontal rotation, 36° tilt: Data provided by Xingyue Research Laboratory. Test based on GB/T 13380-2018 “AC electric fans and controls”. Report No.: XYYF-20-0415-1.
*One kilowatt hour of electricity consumption per week: With the direct air distribution mode using the first speed setting with an output of 19.3 W for 8 hours per day, the weekly electricity consumption is 19.3 W × 8 hrs * 7 = 1.08 kWh, which is approximately 1 kilowatt hour.
* The wind speed in night mode corresponds to natural wind speeds, with the levels automatically decreasing once an hour. For example, if the wind speed is set to level 3, the change in wind speed would be level 3 for the first hour, level 2 for the second hour, and level 1 for the third hour, with level 1 remaining constant thereafter.
* Product net weight equivalent to 3.5 kg: Data provided by Xingyue Research Laboratory. Report No.: XYYF-20-0415-5.
* In direct airflow mode, level 1 output is 19.3W: Data provided by China Household Electric Appliance Research Institute (CHEARI). Test based on GB/T 13380-2018 “AC electric fans and controls”. Report No.: WS1-20-033.
* Power On/Off Preset: Open the fan plugin in Mi Home App > More > Settings > Power On/Off Preset</sup>

Specifications:

• Product name: Mi Smart Standing Fan 2 Lite
• Product Model No.: JLLDS01DM
• Product type: Pedestal fan
• Product noise: ≤ 63dB(A)
• Product dimensions: 343 x 330 x 1,000mm
• Wireless connection: WLAN IEEE 802.11 b/g/n 2.4 GHz
• Implemented standards: GB 4706.1-2005, GB 4706.27-2008, GB 4343.1-2018, GB 17625.1-2012, GB/T 13380-2018
• Nominal voltage: 220-230V~
• Rated power: 38W
• Rated frequency: 50/60Hz
• Rotor blade diameter: 285mm
• Product net weight: 3.5kg
• Power cord length: 1.6m
• This device has the following model authorization number CMIIT ID: 2017DP7231 Radio Transmission Module
