BIOSTAR μητρική H510MX/E 2.0, 2x DDR4, s1200, USB 3.2, uATX, GbE, Ver. 6.2

BIOSTAR μητρική H510MX/E 2.0, 2x DDR4, s1200, USB 3.2, uATX, GbE, Ver. 6.2

Η H510MX/E 2.0 της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset H510 της Intel.
Διαθέτει 3 εξόδους γραφικών: VGA, DVI-D και HDMI.

-Supports 10th/11th Generation Intel Core™ Processor
-Intel H510 single chip architecture
-Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 3.0 (32Gb/s)
-Supports USB 3.2 Gen1
-Supports WiFi 6 module (No WiFi 6 card included)

Τεχνικά Χαρακτηριστικά
Chipset: Intel H510
CPU Support: Support for 10th/ 11th Generation Intel Core i9/i7/i5/i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Storage: 1x M.2 socket and 4x SATA III (6Gb/s) ports
Integrated video: By CPU model, DX12, HDCP, HDMI 1.4 version
LAN: Intel I219V, 10/100/1000 Mb/s auto negotiation, Half/Full duplex capability
Audio codec: ALC897, 7.1 Channels, High Definition Audio
USB: 4x USB 3.2(Gen1) ports, 8x USB 2.0 ports
Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
Dimension: Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L )
OS Support: Supports Windows 10(64bit) / 11(64bit)
H/W Monitoring: CPU/System Temperature Monitoring, CPU/System Fan Monitoring, Smart/Manual CPU Fan Control, System Voltage Monitoring

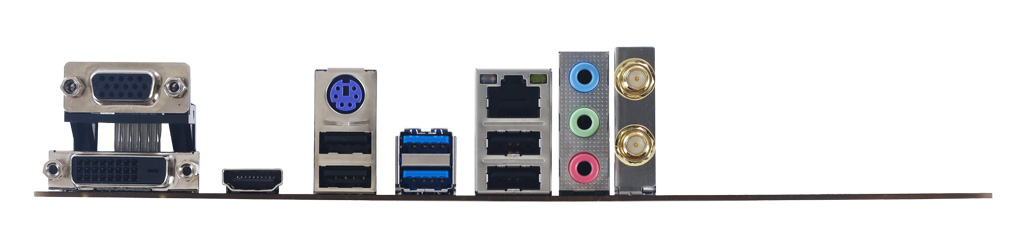

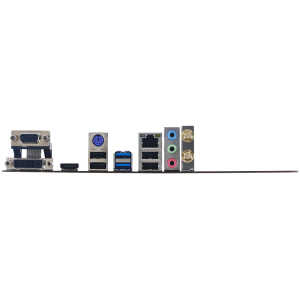

REAR I/O:
2x WIFI Antenna Ports
1x PS/2 Keyboard / Mouse
1x HDMI Port
1x VGA Port
1x DVI-D Port
2x USB 3.2 (Gen1) Ports
4x USB 2.0 Port
1x LAN port
3x Audio Jack
INTERNAL I/O:
4x SATA III Connectors (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
