Electrifying sound with AI Sound Boost
Powerful sound to make your playlist shine. This sound is made to match your energy, so you feel like you’re hearing each song performed live. Turn it up louder and your music will still sound great, as our new proprietary tech, AI Sound Boost analyzes your music in realtime to deliver maximum acoustic performance with less distortion.

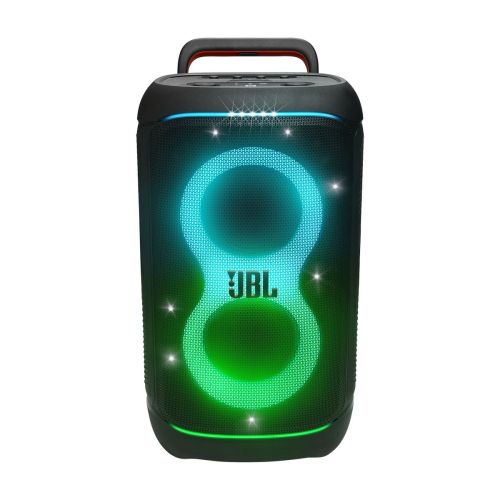

Futuristic lightshow
Did someone say lightshow? Dance the night away with glowing light patterns and strobe effects that make any event a whole mood.
Up to 15 hours of play time
Keep the good vibes going on a single charge with up to 15 hours play time.
Technical specifications:
General Specifications
- Power Input: 100 – 240 V ~ 50 / 60 Hz
- Output Power: 400 W RMS (IEC60268)
Audio Specifications
- Transducer: 2 x 7.5 inch (208 mm) woofers, 2 x 1 inch (25 mm) dome tweeters
- Frequency Response: 40 Hz – 20 kH
- Signal-to-Noise Ratio: > 80 dB
Dimensions
- Product Dimensions (W x H x D): 415 x 769 x 369 mm / 16.34″ x 30.28″ x 14.53″
- Net Weight: 25.5 kg / 56.2 lbs
- Packaging Dimensions (W x H x D): 489 x 854 x 480 mm / 19.25″ x 33.62″ x 18.9″
- Gross Weight: 29.4 kg / 64.8 lbs
Control and Connection Specifications
- Aux-In: 250 mV RMS (3.5 mm connector)
- Mic-In: 20 mV RMS
- Guitar-In / Line-In: 100 mV RMS
- Bluetooth/USB Input: -12 dBFS
- Bluetooth Version: 5.4
- Bluetooth Profile: A2DP V1.4, AVRCP V1.6
- Bluetooth Transmitter Frequency Range: 2.4 GHz – 2.4835 GHz
- Bluetooth Transmitter Power: ≤ 18 dBm (EIRP)
- Bluetooth Transmitter Modulation: GFSK, π/4 DQPSK, 8DPSK
- USB Format: FAT16, FAT32
- Supported Formats: .MP3, .WAV, .WMA, .FLAC (not available for EMEA region)
- USB-C Charge Out:
- PDO: 5 V / 3 A, 9 V / 3 A, 15 V / 2 A, 20 V / 1.5 A
- PPS: 5 – 11 V / 2.7 A, 5 – 16 V / 1.85 A
- Cable Type: AC power cable (type varies by regions)
- Cable Length: 2.0 m / 6.6 ft
Battery
- Battery Type: JBL BATTERY 600, Li-ion 99.02 Wh (equivalent to 21.6 V / 4584 mAh)
- Battery Charge Time: 3 hours (speaker off mode)
- Music Play Time: Up to 15 hours (varies by volume level and audio content)
Items included:
- 1 x JBL PartyBox 520
- 1 x Quick-Start Guide
- 1 x Safety Instruction and Warranty Card
- AC Power Cord (quantity and plug type vary by regions)
