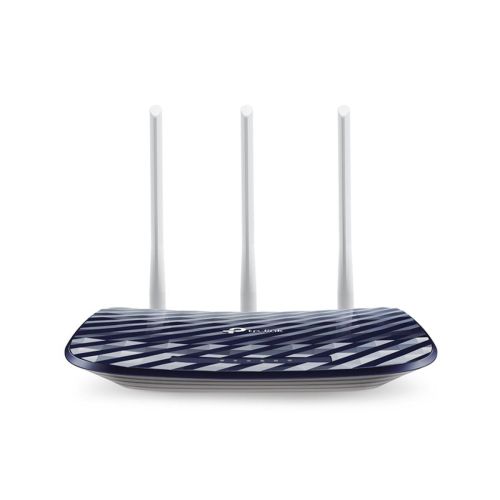

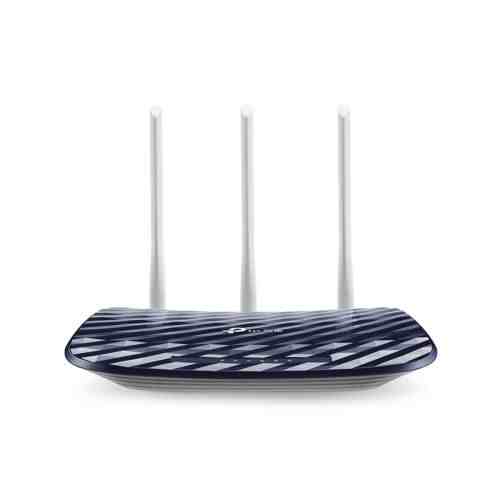

TP-Link Wi-Fi Router Archer C20 AC750, 750Mbps, LAN/WAN, 802.11ac, Black EU

Features:

• Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth
• Three external antennas provide stable omnidirectional signal and superior wireless coverage
• Supports three modes：Router，Range Extender and Access Point Modes
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming
• Parental Controls manage when and how connected devices can access the internet
• Guest Network provides separate access for guests while securing the host network

Technical specifications:

Wireless

• Standards: Wi-Fi 5
  • IEEE 802.11ac/n/a 5 GHz
  • IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC750
  • 5 GHz: 433 Mbps (802.11ac)
  • 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: Suitable for 2 bedroom houses
  • 3× Fixed Antennas
• WiFi Capacity: Medium
  • Dual-Band
• Working Modes: Router Mode, Access Point Mode, Range Extender Mode

Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 5 GHz, 1× 2.4 GHz
• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Hardware

• Processor: Single-Core CPU
• Ethernet Ports:
  • 1× 10/100 Mbps WAN Port
  • 4× 10/100 Mbps LAN Ports
• Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button
• Power: 9 V ⎓ 0.6 A

Software

• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: NO-IP, Comex, DynDNS
• Management: Tether App, Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Certifications: FCC, CE, RoHS
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Test Data

• WiFi Transmission Power:
  • CE: <20dBm (2.4GHz), <23dBm (5GHz)
• WiFi Reception Sensitivity:
  • 5GHz: Various sensitivity levels
  • 2.4GHz: Various sensitivity levels

Physical

• Dimensions (W×D×H): 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)

Items included:

• Wi-Fi Router Archer C20
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
